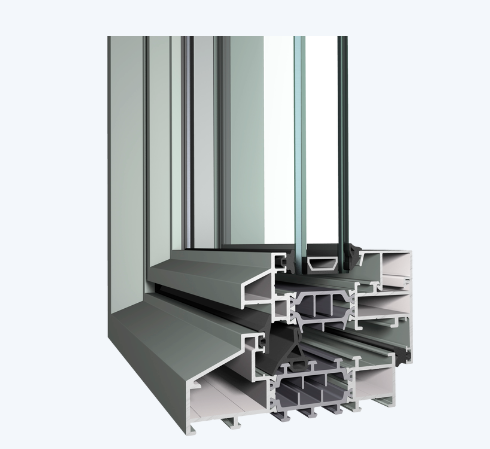

Thiết kế thanh mảnh và thân thiện với người dùng và hệ thống cách nhiệt cao SlimLine 38 phù hợp hoàn hảo cho bất kỳ dự án hiện đại nào. Cửa sổ và cửa ra vào bằng nhôm bền bỉ mang đến sự tự do thiết kế không giới hạn nhờ nhiều biến thể tối giản của chúng.
- Cửa sổ phong cách thanh mảnh nhưng vô cùng chắc chắn.
- Rất phù hợp các công trình mới hoặc cải tạo.
- Khả năng cách nhiệt tuyệt hảo.
Performance
Energy
Thermal insulation – Uf1.9 W/m²K
Thermal insulation – Uw0.96 W/m²K
Comfort
Air tightnessClass 4 (600Pa)
Water tightnessClass 9A (600Pa)
Wind load resistanceClass C4 (1600Pa)
Acoustics – Rw(C;Ctr)45(-1,-5) dB
Opening & closing resistanceClass 3
Safety
Burglar resistanceRC2WK2PAS 24
* Performances and properties depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Properties
Max. dimensions & weight
Min. height of element639 mm
Max. height of element2839 mm
Min. width of element489 mm
Max. width of element1239 mm
Min. height of vent600 mm
Max. height of vent2800 mm
Min. width of vent450 mm
Max. width of vent1200 mm
Max. weight of vent170 kg
Sightlines
Min. frame width (inward opening)33.5 mm
Min. vent width (inward opening)23 mm
Min. frame-vent width (inward opening)67 mm
Min. frame width (outward opening)29 mm
Min. vent width (outward opening)60.5 mm
Min. frame-vent width (outward opening)80 mm
Min. width T-profile48 mm
Profile design slope24.2 degrees
Depth frame99 mm
Depth Vent86 mm
Depth frame-vent99 mm
Glazing
Rebate height13.5 mm
Glazing methodDry glazingSiliconized glazingInternal glazingGlazing bead
Min. glass thickness – frame/element16 mm
Max. glass thickness – frame/element55 mm
Min. glass thickness – vent16 mm
Max. glass thickness – vent55 mm
