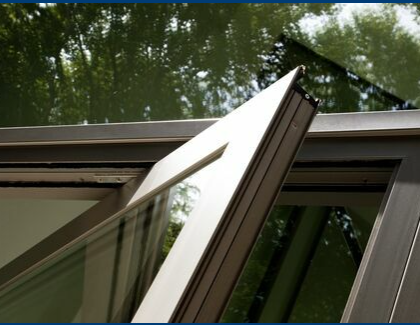

MasterLine 8 là một hệ thống cửa sổ chất lượng cao liên kết vô số tùy chọn thiết kế với hiệu suất tốt nhất trong phân khúc và tốc độ sản xuất vô song. Thế hệ cửa sổ nhôm tiếp theo này có sẵn ở ba cấp độ cách nhiệt để phù hợp với mọi nhu cầu của bạn.
- Đây là sản phẩm chủ lực của Reynaers, với rất nhiều ứng dụng.
- Hiệu suất tuyệt vời với thông số AWW.
- Chất lượng tuyệt hảo, giá thành cạnh tranh.
- Hệ thống thoát nước ẩn thông minh, Không còn nắp đậy bằng nhựa, hãy tận hưởng những đường nét đó.
Flyscreen : Tận hưởng buổi tối mùa hè mát mẻ, không có côn trùng, không mất ngủ.
Balustrade: Hệ thống ban công an toàn giữ nguyên vẻ đẹp kiến trúc.
Glass Corner :Hệ thống kết nối góc kính – kính không giảm tầm nhìn mang lại góc nhìn vô cực.
Performance
Energy
Thermal insulation – Uf1.3 W/m²K
Thermal insulation – Uw0.88 W/m²K
Comfort
Air tightnessClass 4 (600Pa)
Water tightnessClass E900 (900Pa)
Wind load resistanceClass C5 (2000Pa)
Acoustics – Rw(C;Ctr)TUTI: 46(0;-3) dB DC: 44(-2;-4) dB
Opening & closing resistanceClass 1
Safety
Burglar resistanceRC2RC3PAS 24
Impact resistanceI5/E5
* Performances and properties depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Properties
Max. dimensions & weight
Min. height of vent600 mm
Max. height of vent2800 mm
Min. width of vent450 mm
Max. width of vent1700 mm
Max. weight of vent300 kg
Max. weight of glass1200 kg
Sightlines
Min. frame width (inward opening)53 mm
Min. vent width (inward opening)37 mm
Min. frame-vent width (inward opening)97 mm
Min. frame width (outward opening)20 mm
Min. vent width (outward opening)118 mm
Min. frame-vent width (outward opening)138 mm
Min. width T-profile50 mm
Depth frame77 mm
Depth Vent87 mm
Depth frame-vent87 mm
Glazing
Rebate height27 mm
Glazing methodDry glazing with EPDM or neutral siliconesDry glazingSiliconized glazingInternal glazingExternal glazingGlazing bead
Min. glass thickness – frame/element4 mm
